Hypertherm®
PLASMA CONSUMABLES |
|
MAX100D®, PAC 160® TORCHES
|

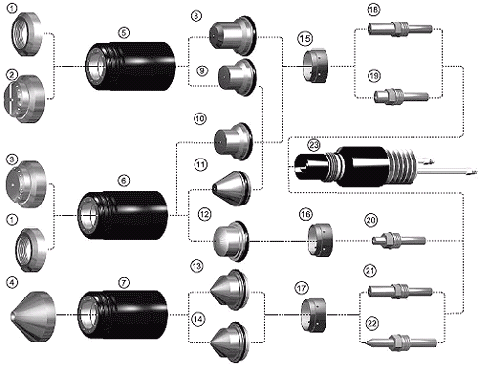

Item |
Part No. |
Ref. No. |
Description |
Std. Pkg |
|
1 |
AK-0070 |
20333 |
Deflector |
1 |
|
2 |
AK-0072 |
020335* |
Shield, 100 A |
1 |
|
3 |
AK-1041 |
020492* |
Machine Shield,60A |
1 |
|
4 |
AK-1048 |
020712* |
Shield, Gouging |
1 |
|
5 |
AK-1049 |
020846* |
Shield Cap, 100A |
1 |
|
|
AK-0071 |
020334* |
Shield Cap 100 Amp |
1 |
|
6 |
AK-1050 |
020756* |
Shield Cap, 60A |
1 |
|
7 |
AK-1051 |
020699* |
Shield Cap Gouging |
1 |
|
8 |
AK-1052 |
020754* |
Nozzle, Extended |
1 |
|
9 |
AK-1053 |
20705 |
Nozzle, 100A |
5 |
|
10 |
AK-1054 |
20753 |
Nozzle, 60A |
5 |
|
11 |
AK-1055 |
20922 |
Nozzle, Unshielded, 60A |
1 |
|
|
AK-0838 |
120336 |
Nozzle, Shielded 60A |
5 |
|
12 |
AK-1056 |
20921 |
Nozzle, Unshielded, 40A |
1 |
|
13 |
AK-1057 |
020745* |
Nozzle, Gouging, AIR |
1 |
|
14 |
AK-1058 |
020704* |
Nozzle, Gouging, A/H35 |
1 |
|
15 |
AK-1059 |
20706 |
Swirl Ring |
2 |
|
16 |
AK-1060 |
20950 |
Swirl Ring, 40A |
2 |
|
17 |
AK-1061 |
20750 |
Swirl Ring, Gouging |
2 |
|
18 |
AK-0098 |
20564 |
Electrode, Extended, AIR |
5 |
|
|
AK-1062 |
20887 |
Electrode, Extended, N2 |
5 |
|
19 |
AK-0066 |
20191 |
Electrode, AIR |
5 |
|
|
AK-0067 |
20193 |
Electrode, N2 |
5 |
|
20 |
AK-1063 |
20951 |
Electrode, AIR, 40A |
5 |
|
21 |
AK-1064 |
20744 |
Electrode, Gouging, AIR |
5 |
|
22 |
AK-1065 |
020703* |
Electrode, Gouging, H35 |
5 |
|
23 |
AK-1398 |
20713 |
TMT 100D Machine Torch |
1 |
|
|
AK-1399 |
020761* |
TMT 100D Hand Torch |
1 |
|
NS |
AK-2316 |
020713-1 |
Torch Insulator |
1 |
|
NS |
AK-0994 |
27055 |
Silicone Grease |
1 |
|
NS |
AK-4007 |
028555* |
Leads Package |
1 |
HYPERTHERM®, MAX100D®, PAC160TM are the Registered Trademarks of HYPERTHERM
INC. * OEM Manufactured Parts
|
|
